LV432876 : MCCB Compact NSX 630F 3P 600A

Print
Compact NSX 630B 3P 600A : MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Icu 36kA, Ics 36kA, ការពារពីកំដៅ,ស្តង់ដារ 60947-

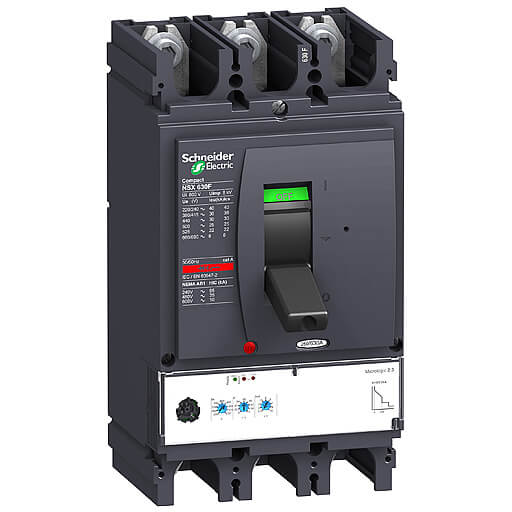

compact nsx 630fcompact nsx 630f
ឧបករណ៏អគ្គីសនី Schneider
Description

Compact NSX 630B 3P 600A : MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Icu 36kA, Ics 36kA, ការពារពីកំដៅ,ស្តង់ដារ 60947-


LV432876 : MCCB Compact NSX 630F 3P 600A datasheet Characteristics

លក្ខណះពិសេស LV432876 : MCCB Compact NSX 630F 3P 600A Datasheet / Catalogue Download

Datasheet MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Compact NSX 630F 3P 600A
Range Compact
Product name Compact NSX
Product or component type Circuit breaker
Device short name Compact NSX630F
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type AC
Network frequency 50/60 Hz
[In] rated current 400 A ( 40 °C )
[Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV
[Ue] rated operational voltage 690 V AC 50/60 Hz
Breaking capacity code F (36 kA) AC
Breaking capacity 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 600 V AC 50/60 Hz conforming to UL 508
35 kA at 480 V AC 50/60 Hz conforming to UL 508
85 kA at 240 V AC 50/60 Hz conforming to UL 508
[Ics] rated service breaking capacity Ics 10 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Ics 25 kA 500 V AC 50/60 Hz conforming to IEC 60947-2
Ics 30 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics 40 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2
Utilisation category Category A
43655
Trip unit name Micrologic 2.3
Trip unit technology Electronic
Trip unit protection functions LSoI
Trip unit rating 630 A ( 40 °C )
Protection type Overload protection (long time) L
Short time short-circuit protection with fixed delay So Instantaneous short-circuit protection I
Pollution degree 3 conforming to IEC 60664-1
Complementary
Control type Toggle
Mounting mode Fixed
Mounting support Backplate
Upside connection Front
Downside connection Front
Auxiliary contact composition Without
Mechanical durability 15000 cycles
Electrical durability 2000 cycles 690 V In conforming to IEC 60947-2
4000 cycles 440 V In conforming to IEC 60947-2
6000 cycles 690 V In/2 conforming to IEC 60947-2
8000 cycles 440 V In/2 conforming to IEC 60947-2
Connection pitch 45 mm
Local signalling LED ready
LED 105 % Ir LED 90 % Ir
Long time pick-up adjustment type Ir Adjustable 9 settings Long time pick-up adjustment range 0.9...1 x Io
Long time delay adjustment type Fixed
[Tr] long-time delay adjustment range 16 s 6 x Ir
Thermal memory 20 minutes before and after tripping Short-time pick-up adjustment type Isd Adjustable 9 settings
[Isd] short-time pick-up adjustment range
1.5...10 x Ir
Short-time delay adjustment type Fixed
Instantaneous pick-up adjustment type Ii
Instantaneous pick-up adjustment range
Fixed
6900 A
Height 255 mm
Width 140 mm
Depth 110 mm
Product weight 6.05 kg
Environment
Overvoltage category Class II
Electrical shock protection class Class II
Standards EN/IEC 60947
UL 508
Product certifications EAC Marine CCC
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262 Ambient air temperature for operation -35...70 °C
Ambient air temperature for storage -55...85 °C
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0819 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold Reference not containing SVHC above the threshold
Product environmental profile Available
Product Environmental Profile
Product end of life instructions Available
