LV432695 : MCCB Compact NSX 400H 3P 400A 70kA

Print

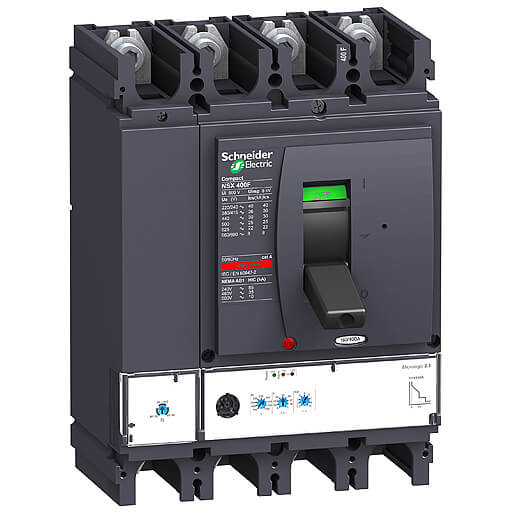

ឌីហ្សង់ទ័រខ្នាតធំ MCCB Schneider Compact NSX 400H 3P 400A Icu 70kA, Ics 70kA, IEC 60947-2
schneider compact nsx 400hschneider compact nsx 400h
ឧបករណ៏អគ្គីសនី Schneider
Description

ឌីហ្សង់ទ័រខ្នាតធំ MCCB Schneider Compact NSX 400H 3P 400A Icu 70kA, Ics 70kA, IEC 60947-2


LV432695 : MCCB Compact NSX 400H 3P 400A 70kA datasheet Characteristics

លក្ខណះពិសេស LV432695 : MCCB Compact NSX 400H 3P 400A 70kA Datasheet / Catalogue Download

Datasheet MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Compact NSX 400H 3P 400A
Range Compact
Product name Compact NSX
Product or component type Circuit breaker
Device short name Compact NSX400H
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type AC
Network frequency 50/60 Hz
[In] rated current 400 A at 40 °C
[Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV
[Ue] rated operational voltage 690 V AC 50/60 Hz
Breaking capacity code H 70 kA 415 V AC
Breaking capacity 85 kA at 240 V AC 50/60 Hz conforming to UL 508 65 kA at 480 V AC 50/60 Hz conforming to UL 508
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 600 V AC 50/60 Hz conforming to UL 508
20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2
Utilisation category Category A
Trip unit name Micrologic 2.3
Trip unit technology Electronic
Trip unit protection functions LSoI
Pollution degree 3 conforming to IEC 60664-1
Complementary
Control type Toggle
Mounting mode Fixed
Mounting support Backplate
Upside connection Front
Downside connection Front
Auxiliary contact composition Without
Mechanical durability 15000 cycles
Electrical durability 12000 cycles 440 V In/2 conforming to IEC 60947-2
3000 cycles 690 V In conforming to IEC 60947-2
6000 cycles 440 V In conforming to IEC 60947-2
6000 cycles 690 V In/2 conforming to IEC 60947-2
Connection pitch 45 mm
Local signalling LED 105 % Ir LED 90 % Ir
LED ready
Protection type L : for overload protection (long time)
So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection
Trip unit rating 400 A at 40 °C
Long time pick-up adjustment type Ir Adjustable 9 settings Long time pick-up adjustment range 0.9...1 x Io
Long time delay adjustment type Fixed
[Tr] long-time delay adjustment range 16 s at 6 x Ir
Thermal memory 20 minutes before and after tripping Short-time pick-up adjustment type Isd Adjustable 9 settings
[Isd] short-time pick-up adjustment range
1.5...10 x Ir
Short-time delay adjustment type Fixed
Instantaneous pick-up adjustment type Ii
Instantaneous pick-up adjustment range
Fixed
4800 A
Height 255 mm
Width 140 mm
Depth 110 mm
Net weight 6.05 kg
Compatibility code NSX400
Environment
Overvoltage category Class II
Electrical shock protection class Class II
Standards EN/IEC 60947
UL 508
Product certifications CCC Marine EAC
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262 Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -55…85 °C
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free Yes
RoHS exemption information Yes
