LV430631 : MCCB Compact NSX 160F 3P 125A

Print
Compact NSX 160B 3P 125A : MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Icu 36kA, Ics 36kA, ការពារពីកំដៅ,ស្តង់ដារ 60947-2

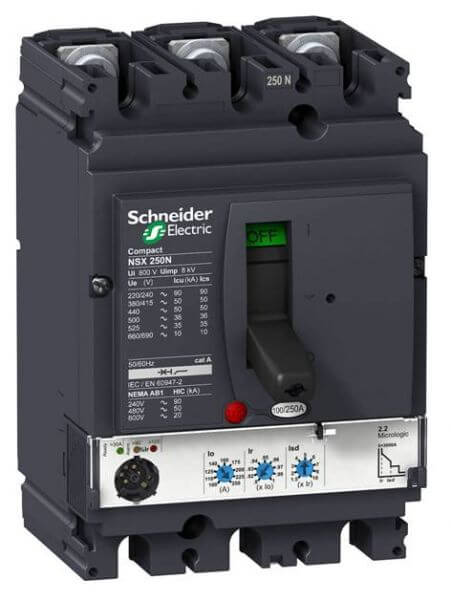

compact nsx 160f 125acompact nsx 160f 125a
ឧបករណ៏អគ្គីសនី Schneider
Description

Compact NSX 160B 3P 125A : MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Icu 36kA, Ics 36kA, ការពារពីកំដៅ,ស្តង់ដារ 60947-2


LV430631 : MCCB Compact NSX 160F 3P 125A datasheet Characteristics

លក្ខណះពិសេស LV430631 : MCCB Compact NSX 160F 3P 125A Datasheet / Catalogue Download

Datasheet MCCB ឌីហ្សង់ទ័រខ្នាតធំ Schneider Compact NSX 160F 3P 125A
Range Compact
Product name Compact NSX
Product or component type Circuit breaker
Device short name Compact NSX160F
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type AC
Network frequency 50/60 Hz
[In] rated current 160 A ( 40 °C )
[Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV
[Ue] rated operational voltage 690 V AC 50/60 Hz
Breaking capacity code F (36 kA) AC
Breaking capacity 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 600 V AC 50/60 Hz conforming to UL 508
35 kA at 480 V AC 50/60 Hz conforming to UL 508
85 kA at 240 V AC 50/60 Hz conforming to UL 508
[Ics] rated service breaking capacity Ics 22 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 30 kA 500 V AC 50/60 Hz conforming to IEC 60947-2
Ics 35 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics 8 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2
Utilisation category Category A
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Trip unit rating 125 A ( 40 °C )
Protection type Overload protection (thermal) L Short-circuit protection (magnetic) I
Pollution degree 3 conforming to IEC 60664-1
Complementary
Control type Toggle
Mounting mode Fixed
Mounting support Backplate
Upside connection Front
Downside connection Front
Auxiliary contact composition Without
Mechanical durability 40000 cycles
Electrical durability 10000 cycles 440 V In/2 conforming to IEC 60947-2
15000 cycles 690 V In/2 conforming to IEC 60947-2
20000 cycles 440 V In conforming to IEC 60947-2
7500 cycles 690 V In conforming to IEC 60947-2
Connection pitch 35 mm
Local signalling Positive contact indication Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 0.7...1 x In Long time delay adjustment type Fixed
[Tr] long-time delay adjustment range 15 s 6 x Ir
120...400 s 1.5 x In
Short-time pick-up adjustment type Isd Fixed
[Isd] short-time pick-up adjustment range
1250 A
Short-time delay adjustment type Fixed
Height 161 mm
Width 105 mm
Depth 86 mm
Product weight 2.2 kg
Environment
Overvoltage category Class II
Electrical shock protection class Class II
Standards EN/IEC 60947
UL 508
Product certifications EAC Marine CCC
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262 Ambient air temperature for operation -35...70 °C
Ambient air temperature for storage -55...85 °C
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1221 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
